2″ Mechanical Lock Panel SPECIFICATIONS

If you want a crisp, clean look, or if you need to waterproof a roof with a low slope, then Mechanical Lock standing seam might be just the panel for you. 14” coverage with a 2” seam height in 26ga and 24ga. All fasteners are concealed, no length restrictions, striations are recommended to reduce oil canning.

2″ Mechanical Lock PANEL

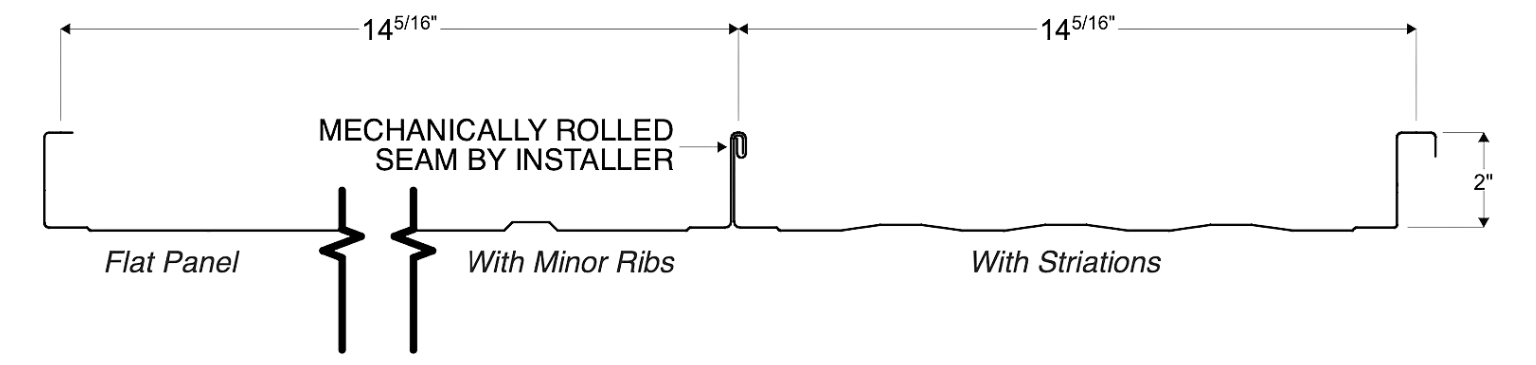

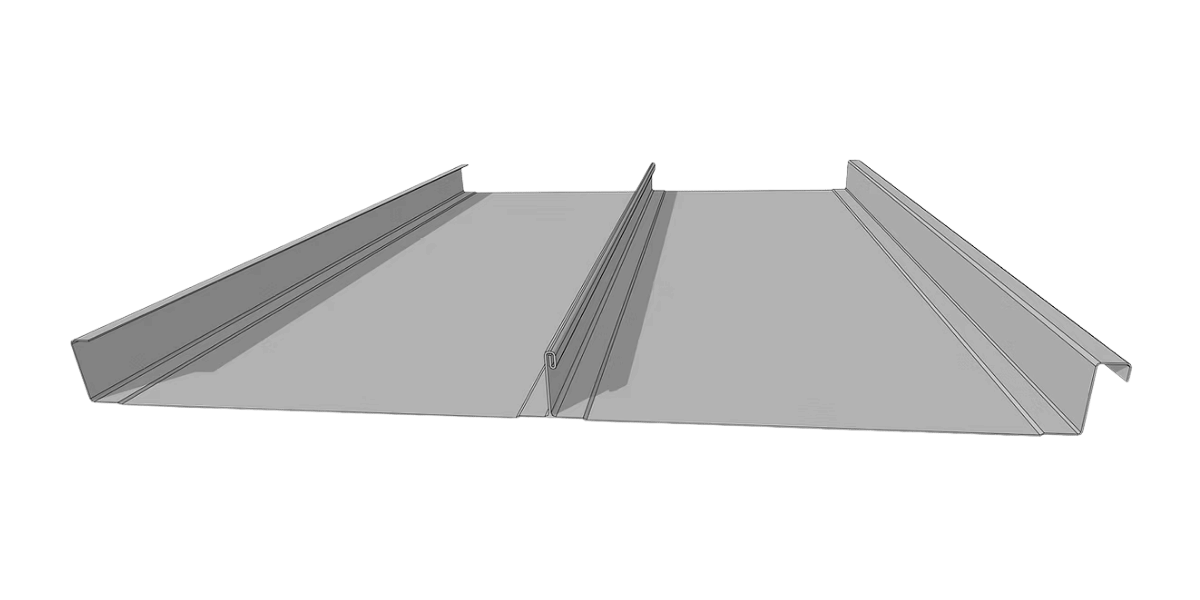

2″ MECHANICAL LOCK PANEL PROFILE

PANEL TYPE

Concealed fastener standing seam roofing panel

OPTION

– Striations or minor ribs recommended
– Available as a
pre-notched panel

SPECS

– 14″ coverage
– 2″ seam height
– 2:12 MIN recommended roof slope (or 1/2:12 with sealant)
– Requires mechanical seaming

WARRANTY

40 year limited warranty on smooth and crinkle colors

GAUGE

26ga, 24ga, 22ga

DOWNLOAD SPEC SHEET

AVAILABLE COLORS

SELECT A COLOR CATEGORY:

All Steel Red

Black

Copper Penny

Dark Brown

Dark Gray

Dark Green

Dark Red

Forest Green

Galvalume

Light Gray

Medium Brown

Stone

Weathered Copper

White

Black Crinkle

Burnished Slate Crinkle

Charcoal Gray Crinkle

Evergreen Crinkle

Rustic Red Crinkle

Taupe Crinkle

Ultra Low Gloss Black

Ultra Low Gloss Burnished Slate

Ultra Low Gloss Charcoal Gray

Barnwood

Burnt Charcoal

Cedar Gray

Cedar Natural

Primitive Pine

Western Rust

A-606 Weathering Steel

Ash Gray

Charcoal Gray

Colonial Red

Dark Bronze

Evergreen

Gotham Patina

Gun Metal

Matte Black

Medium Bronze

Regal Blue

Regal White

Rustic Rawhide

Slate Gray

Surrey Beige

Vintage

ORDER YOUR COLOR SAMPLES

why use 2″ Mechanical Lock PANELS

2″ Mechanical Lock panels are commonly used for projects that require a more robust standing seam system with added strength and performance in demanding conditions. They are often selected for commercial, industrial, and low-slope applications where durability, weather tightness, and long-term reliability are critical. Their deeper profile and secure locking design make them a dependable fit for larger-scale builds and more demanding project requirements.

DOWNLOAD SPEC SHEET

40+ Color Options
Ultra Low Maintenance
Onsite Roll Forming
Hidden Fasteners
Modern Design
Hot Melt Butyl Available
Low Slope Rated

DOWNLOAD SPEC SHEET

TRIM DETAILS

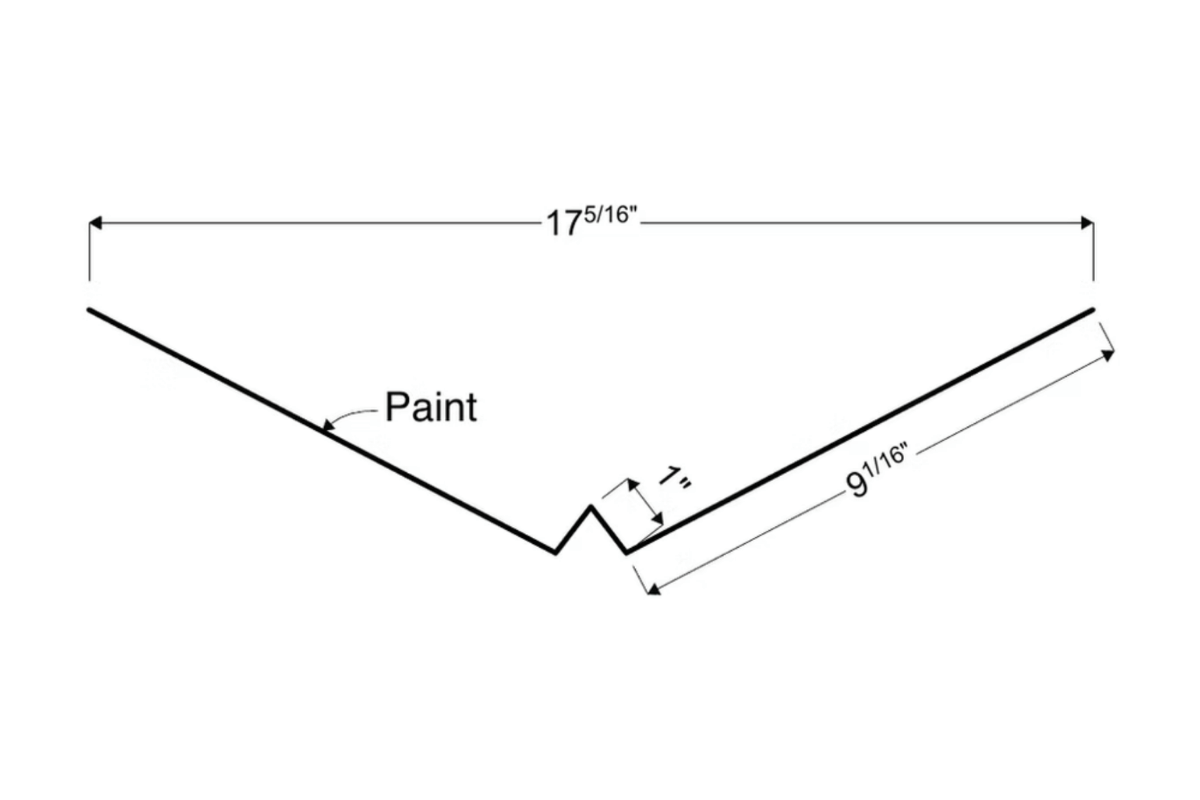

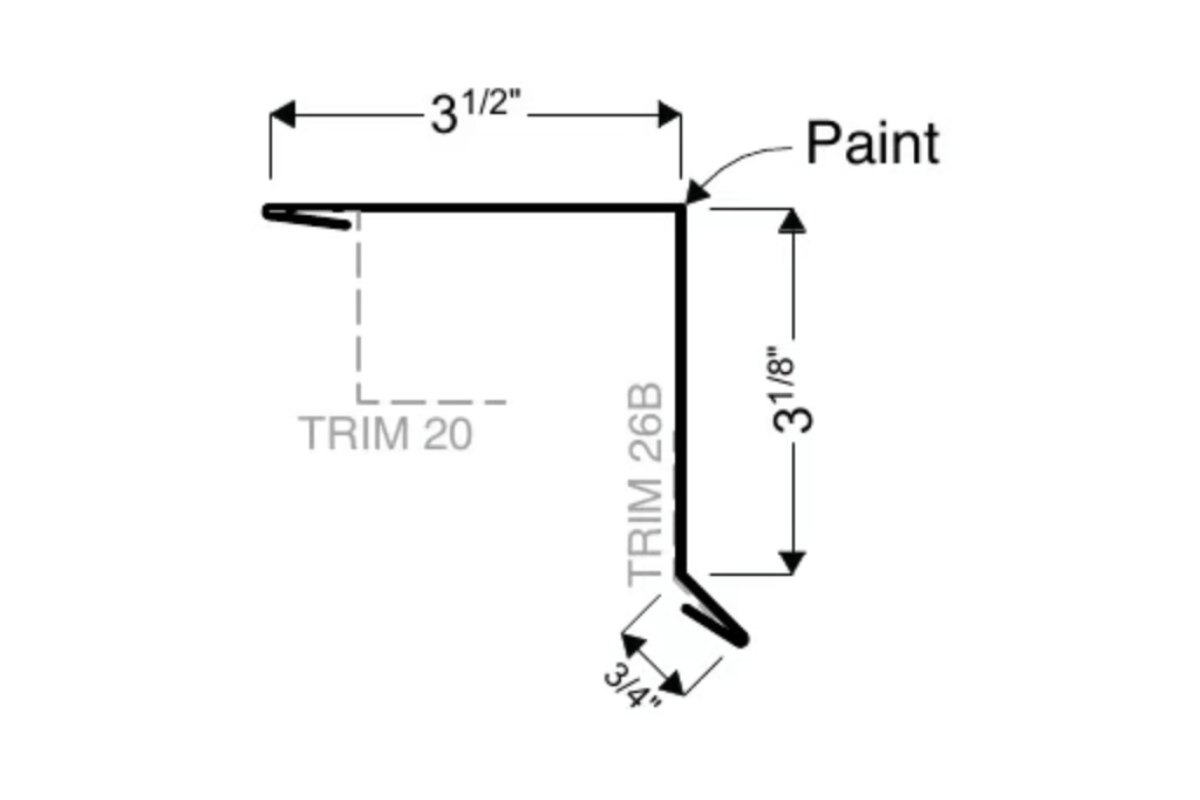

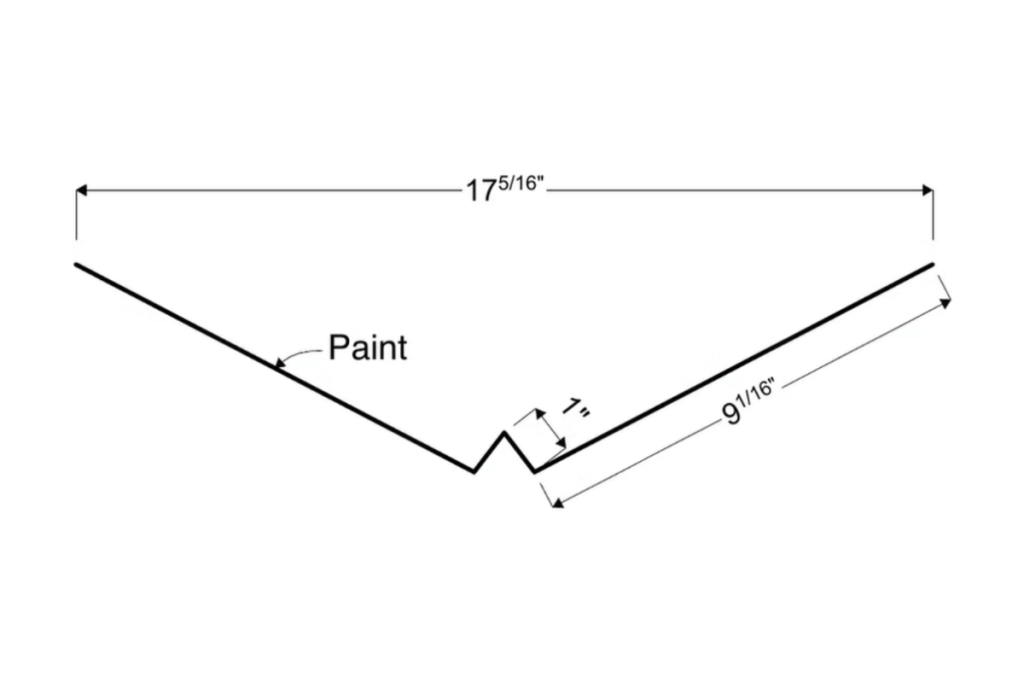

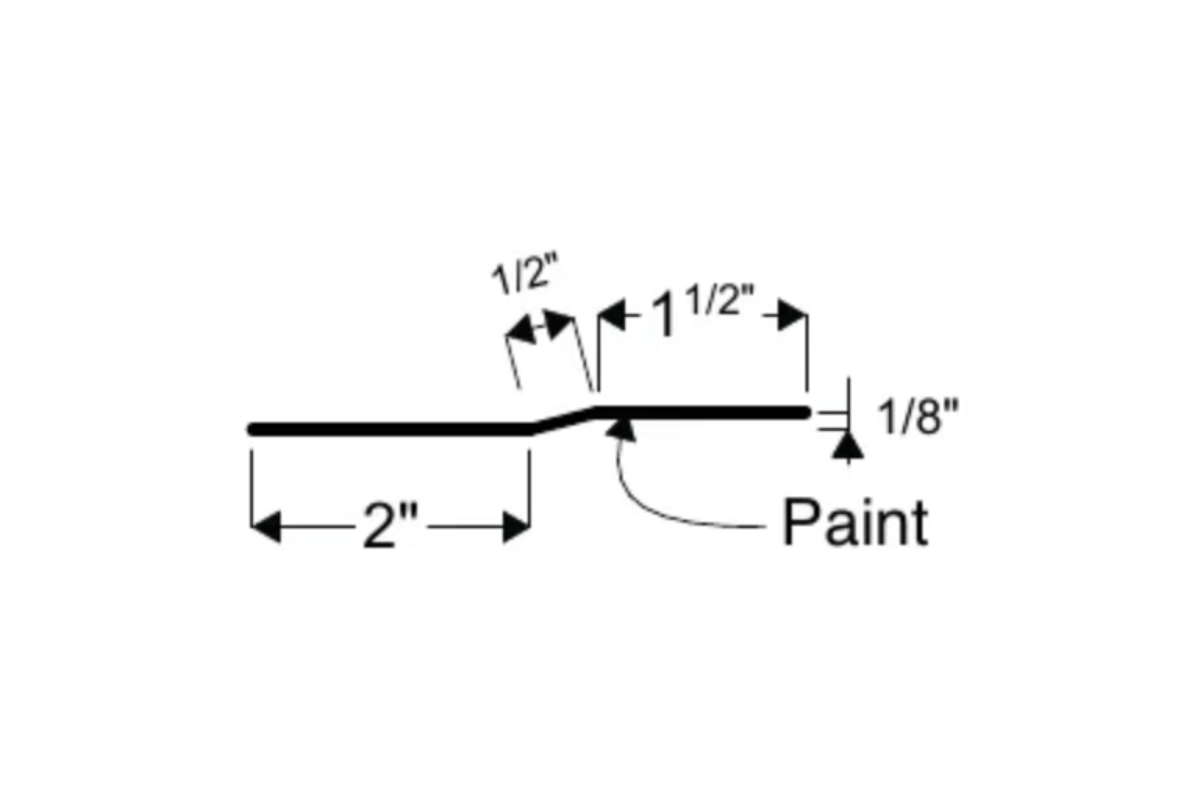

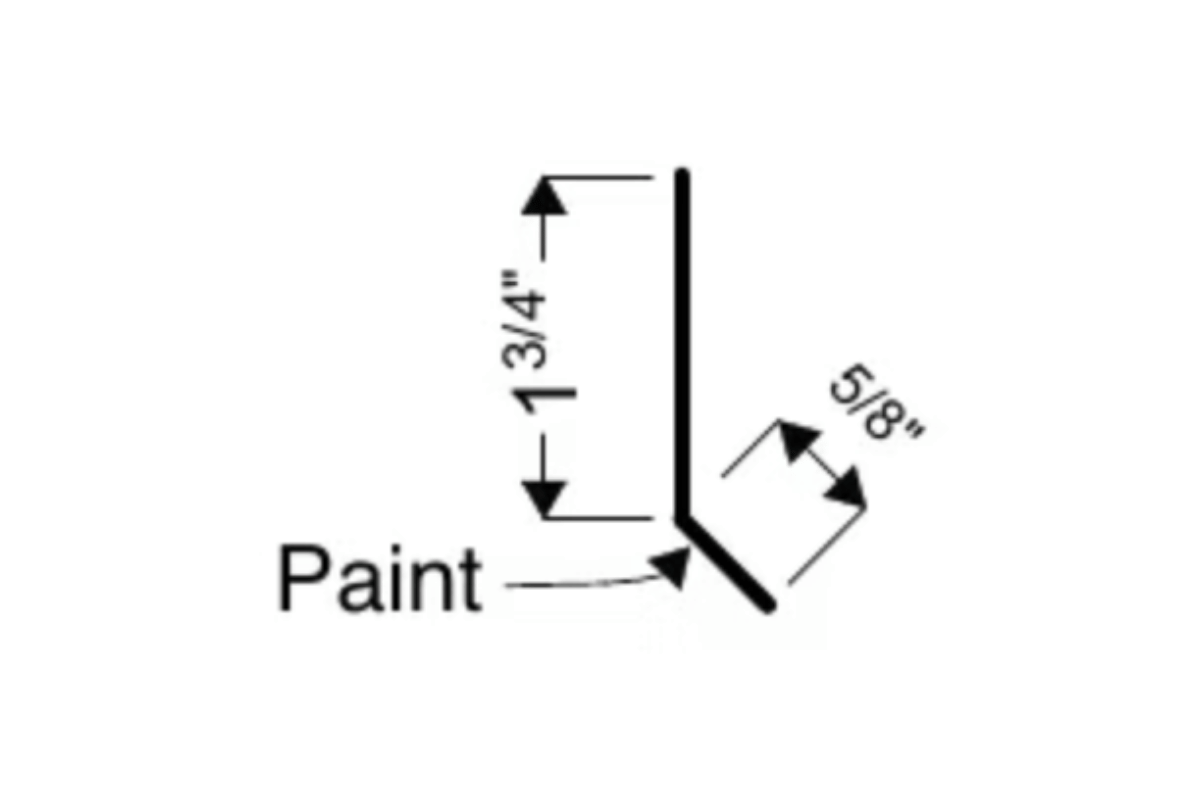

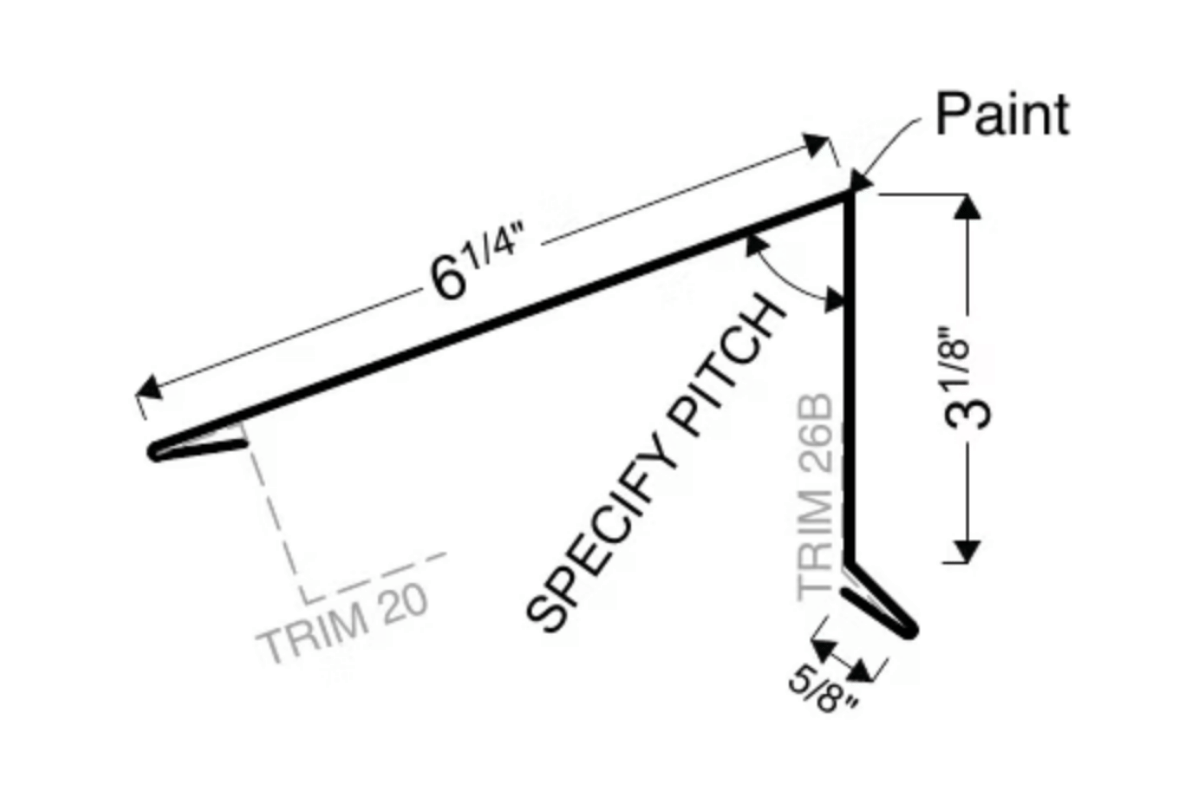

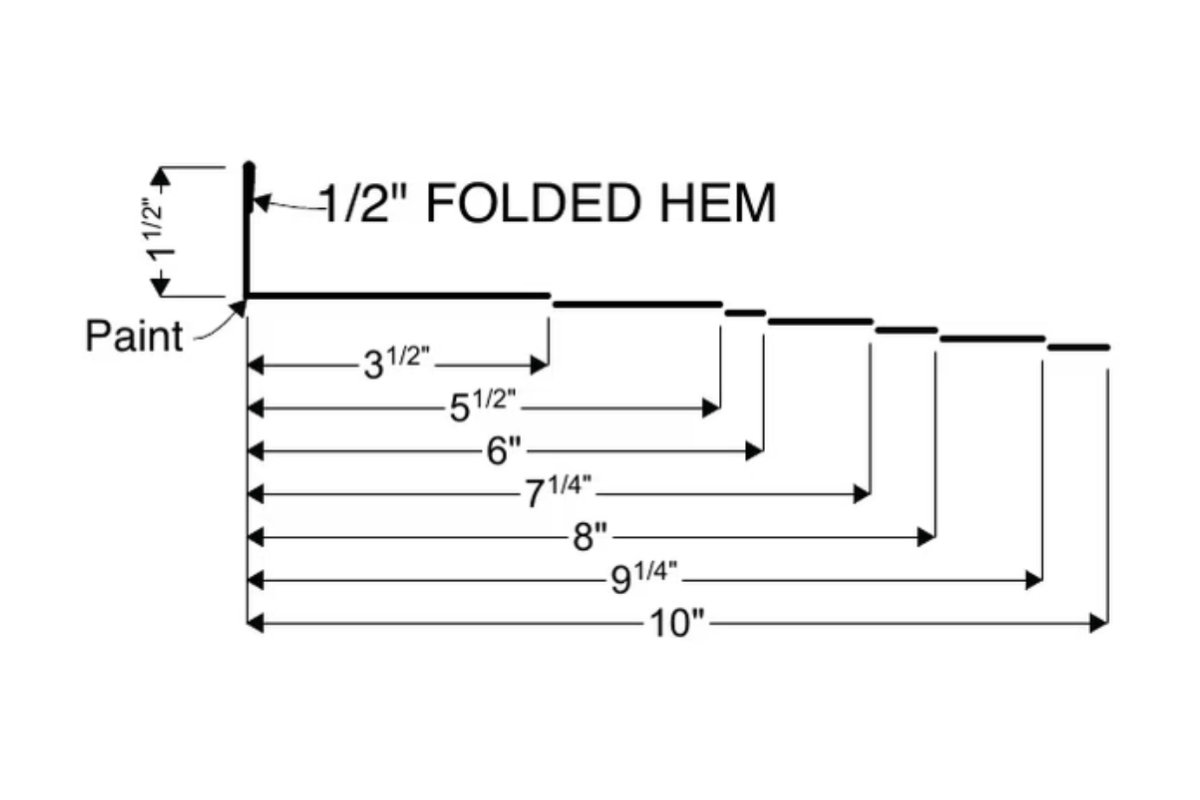

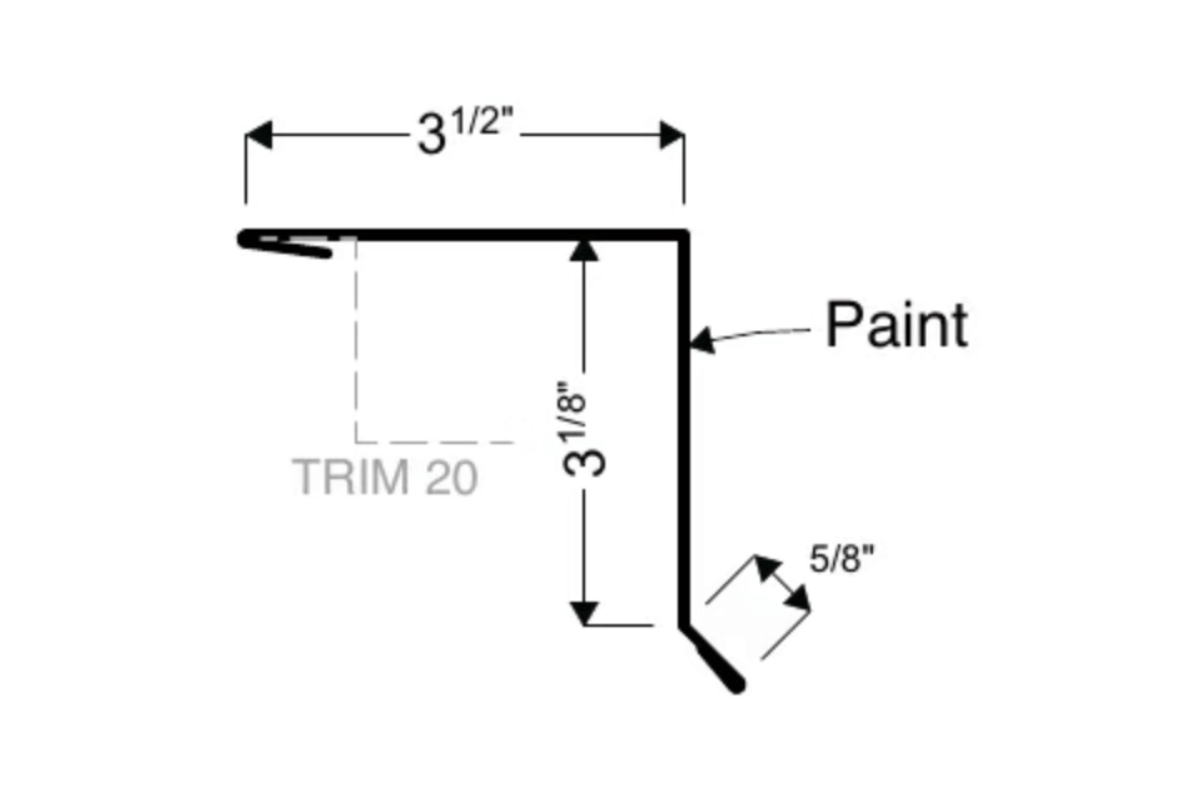

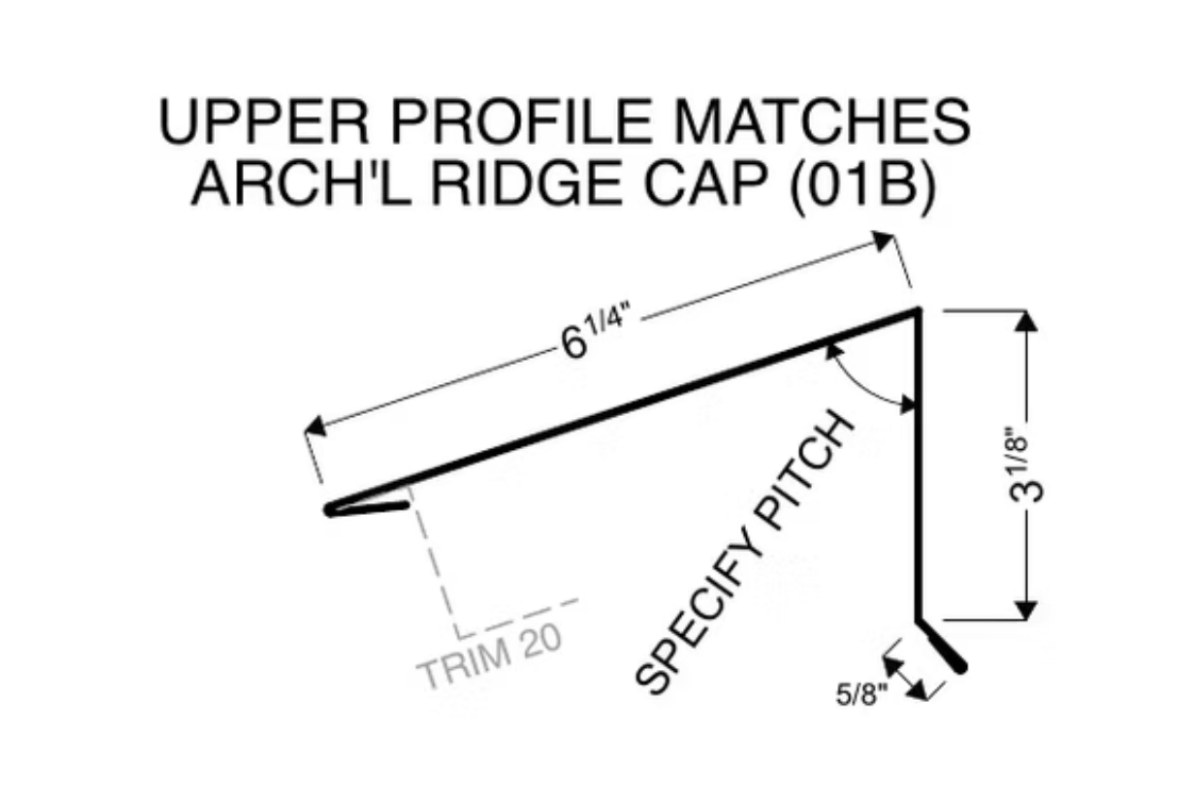

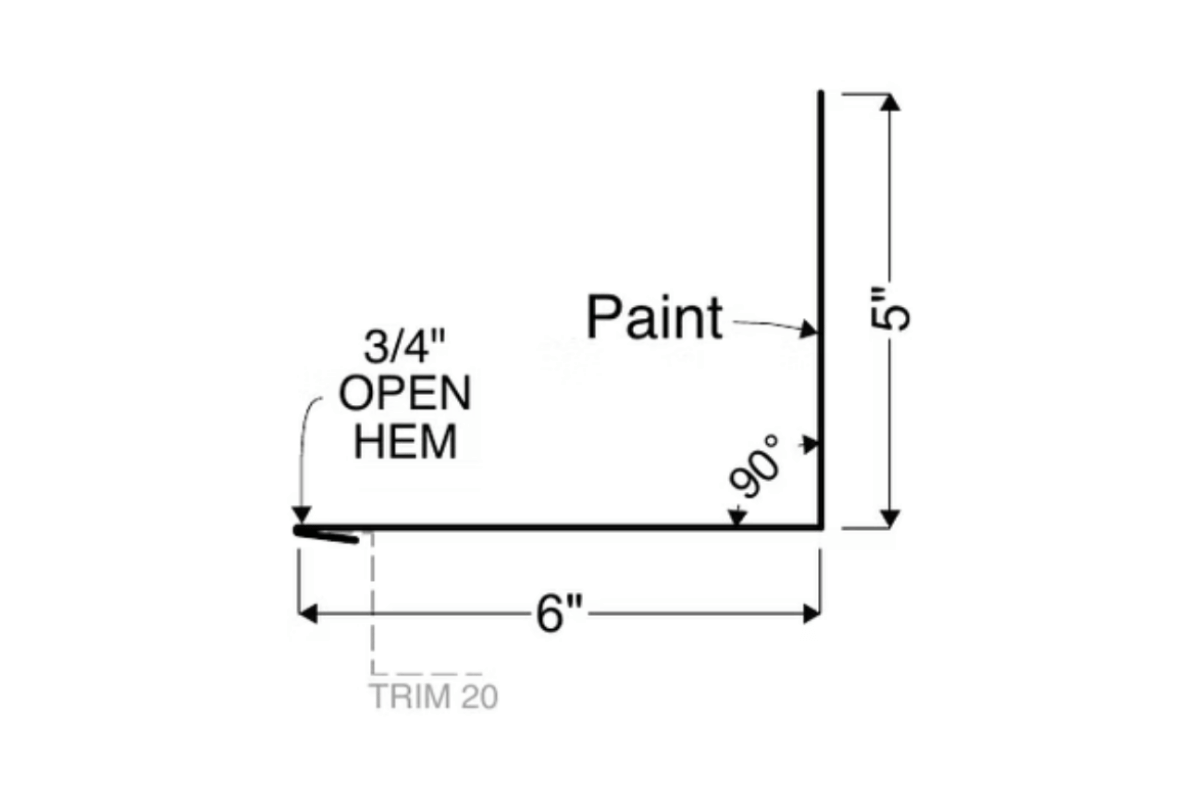

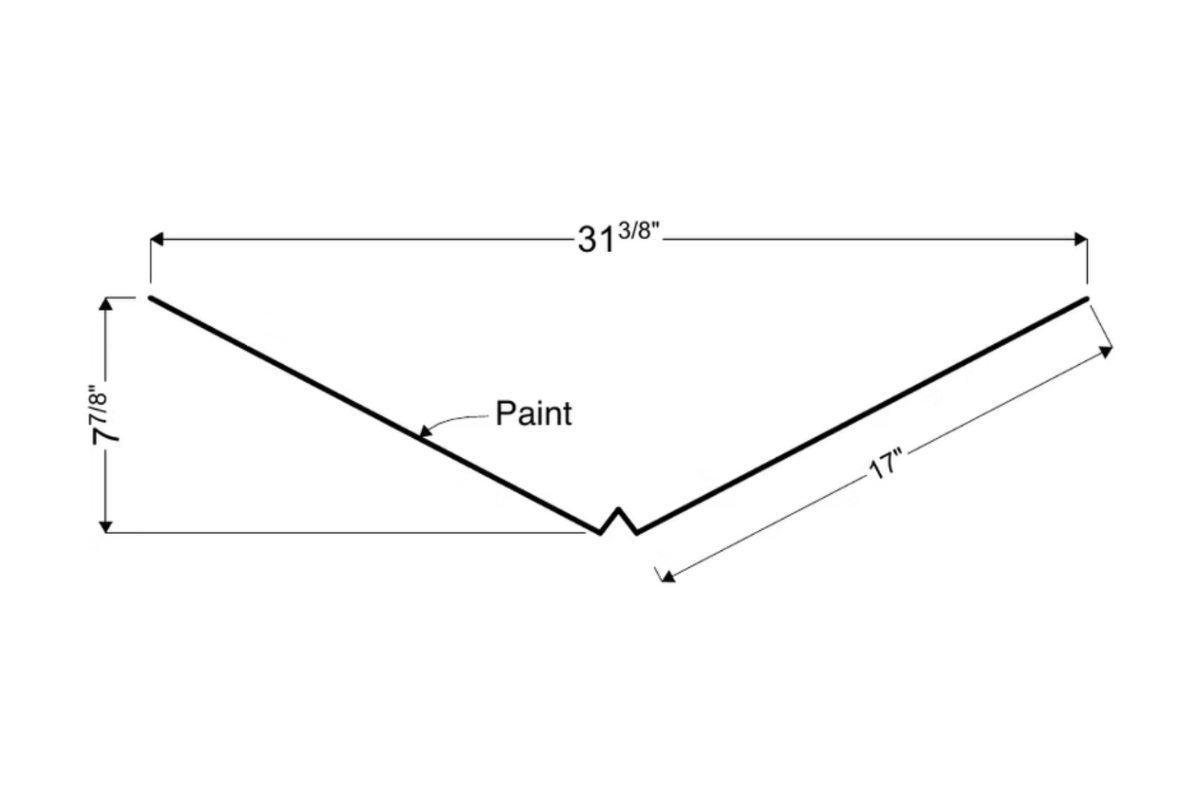

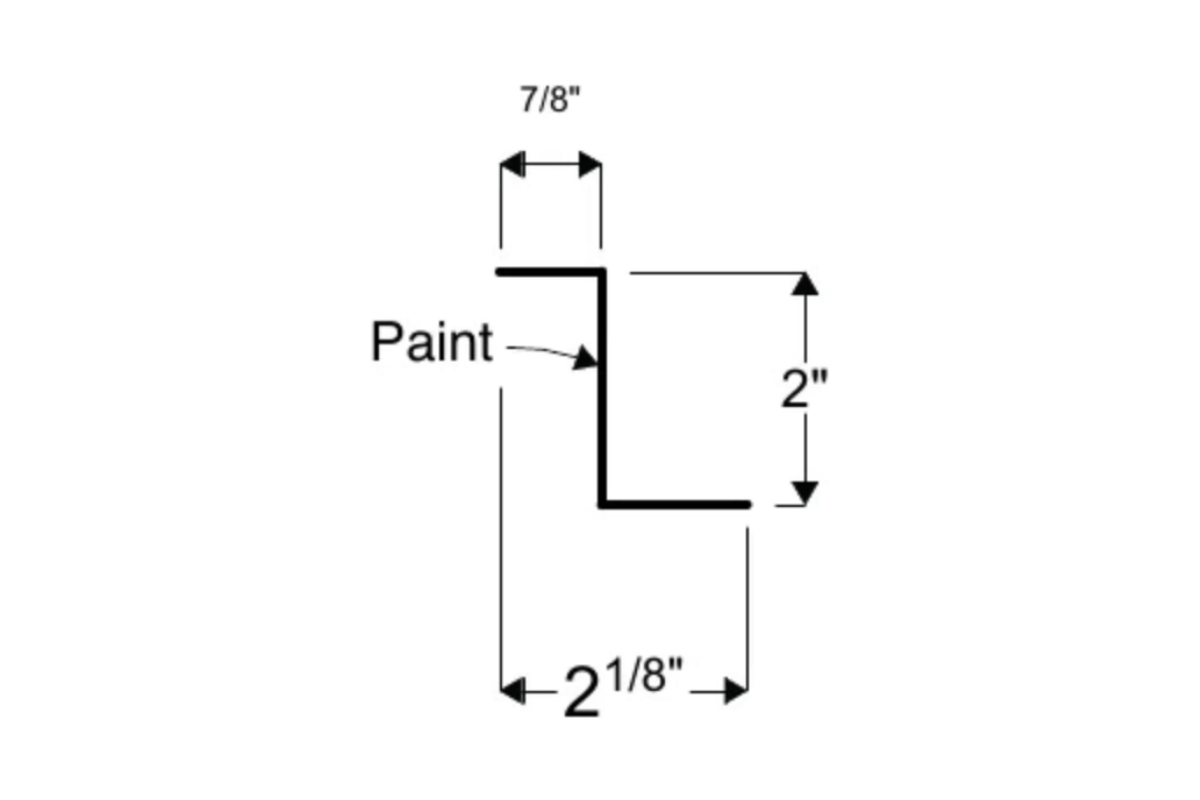

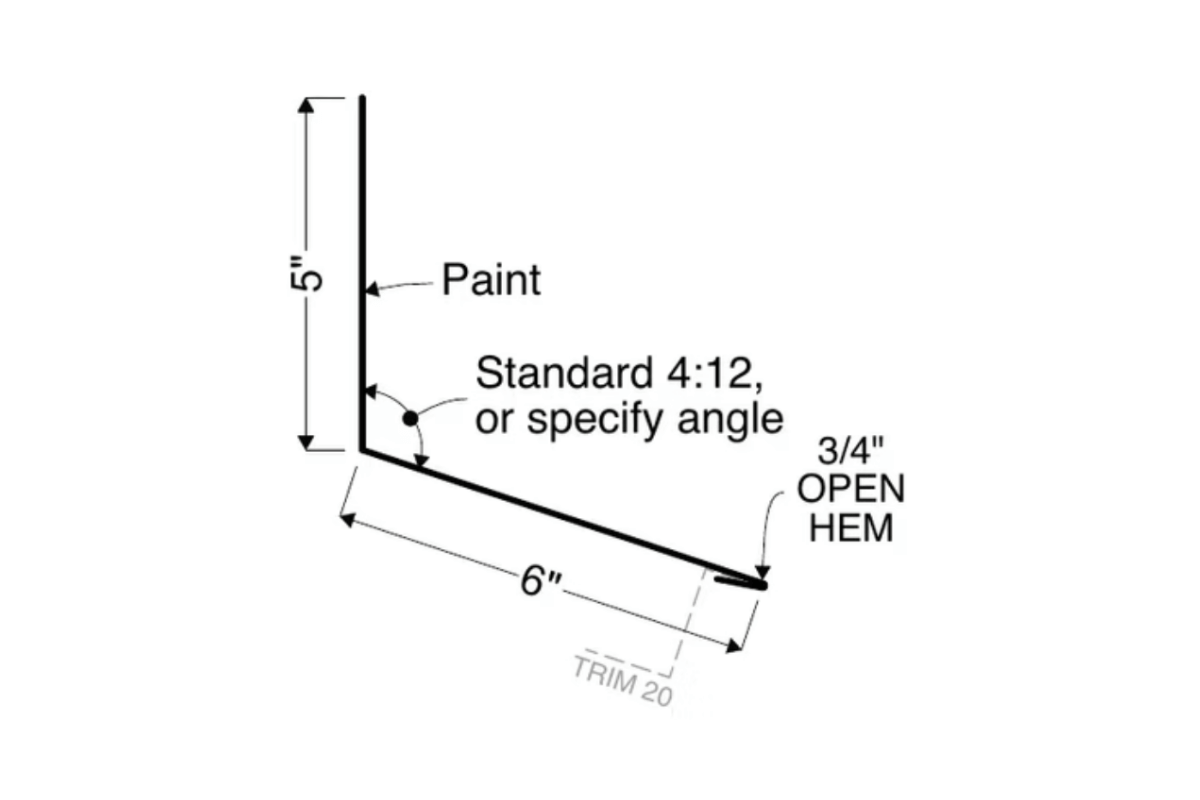

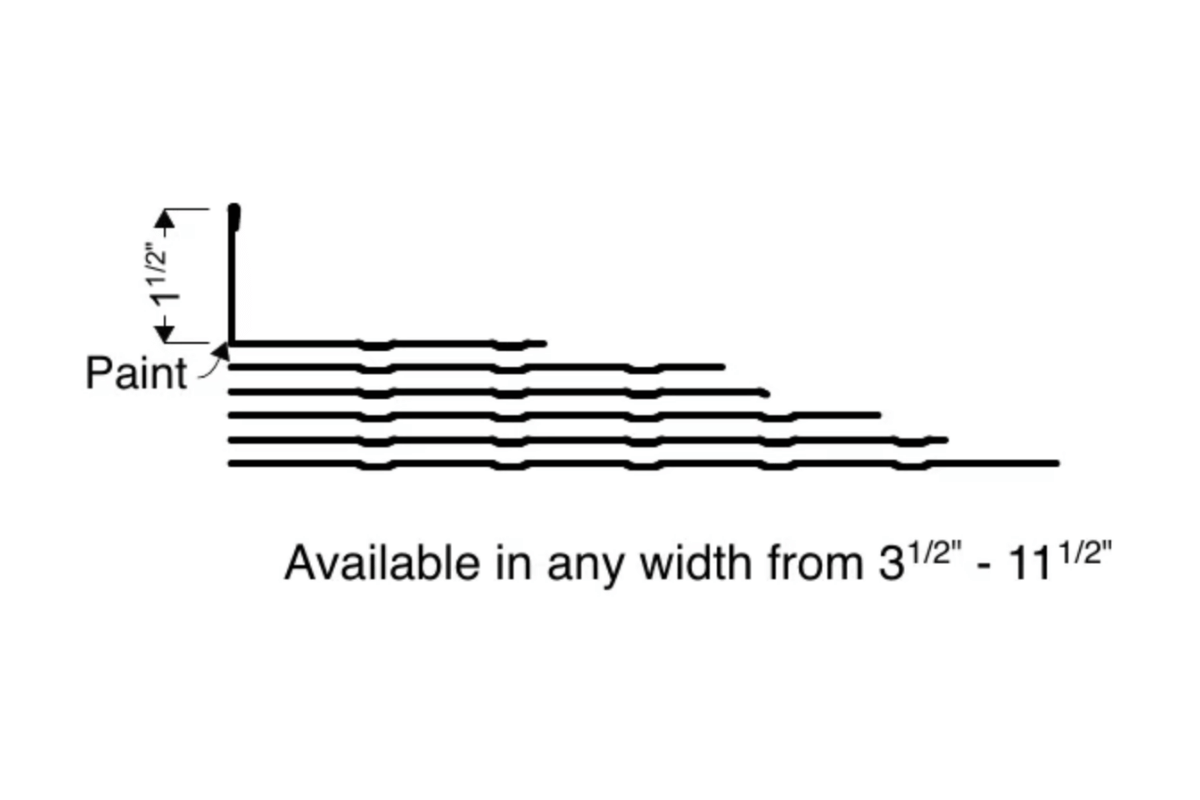

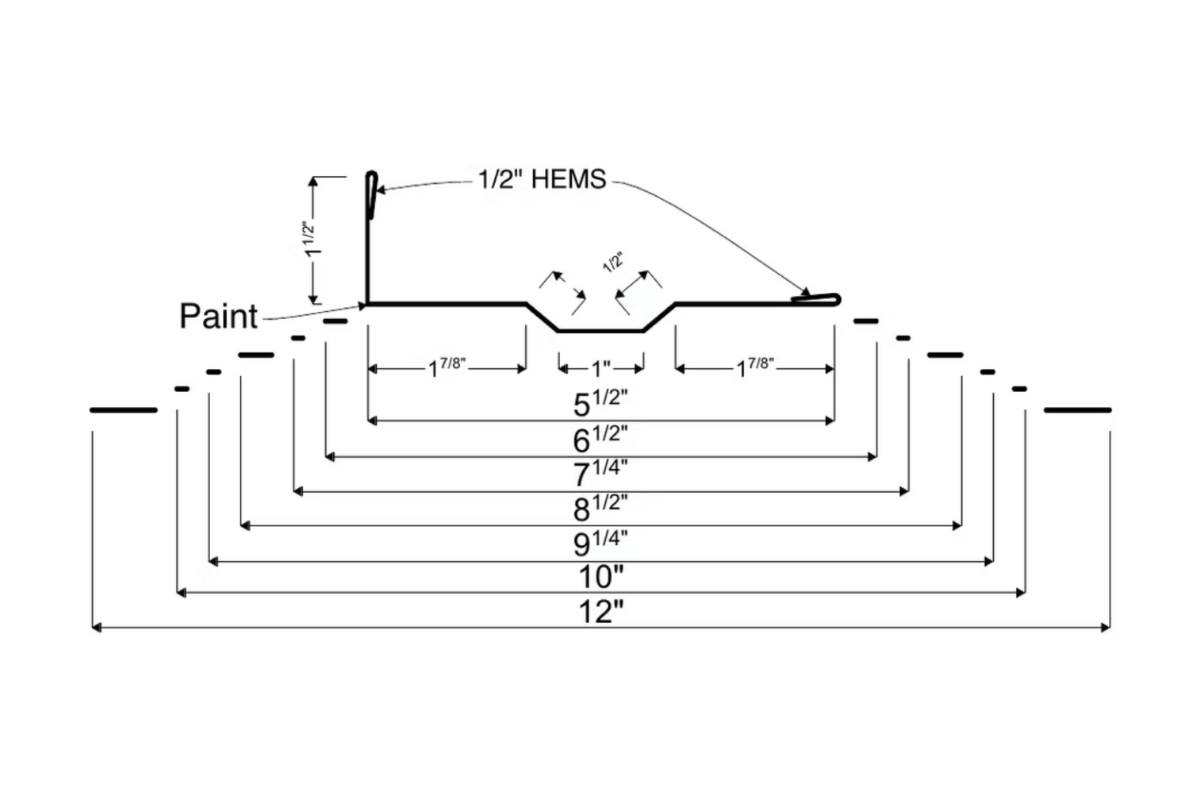

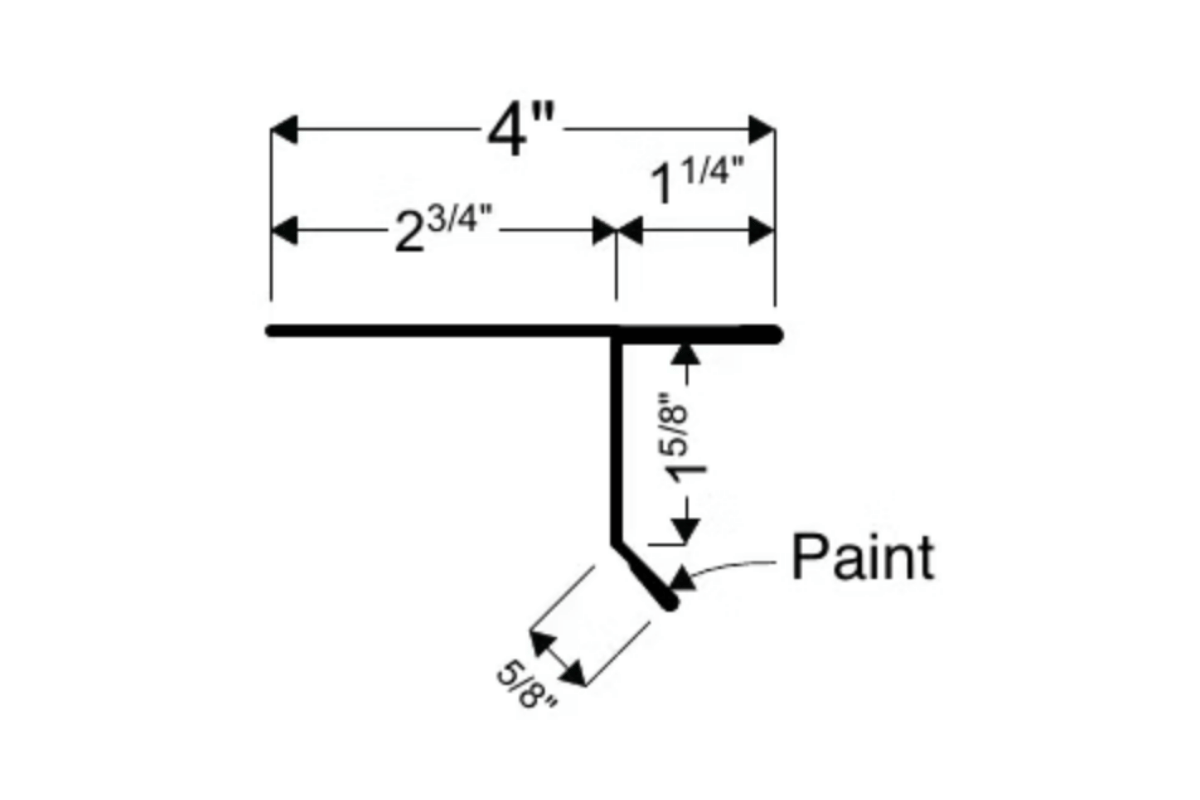

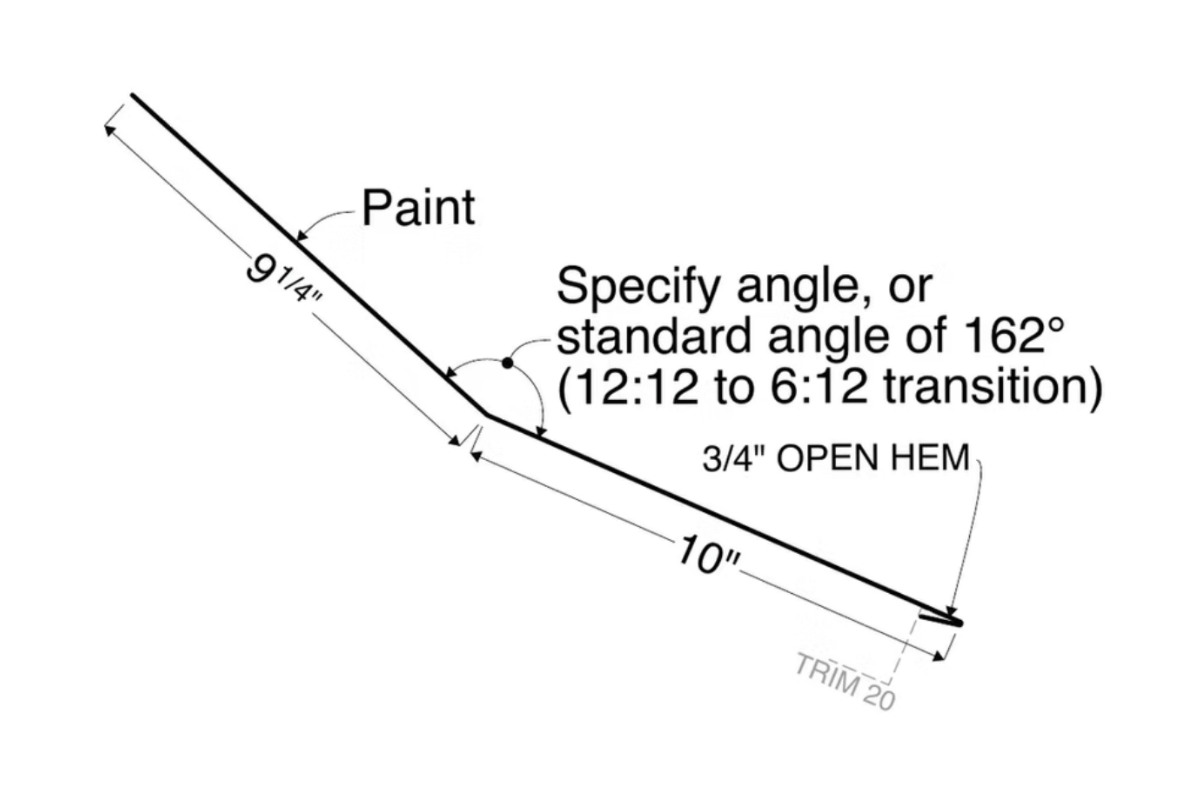

Trim detail reference diagram — Trim Detail Reference

2″ Mechanical Lock TRIM DETAILS

COMMON TRIMS

J Channel

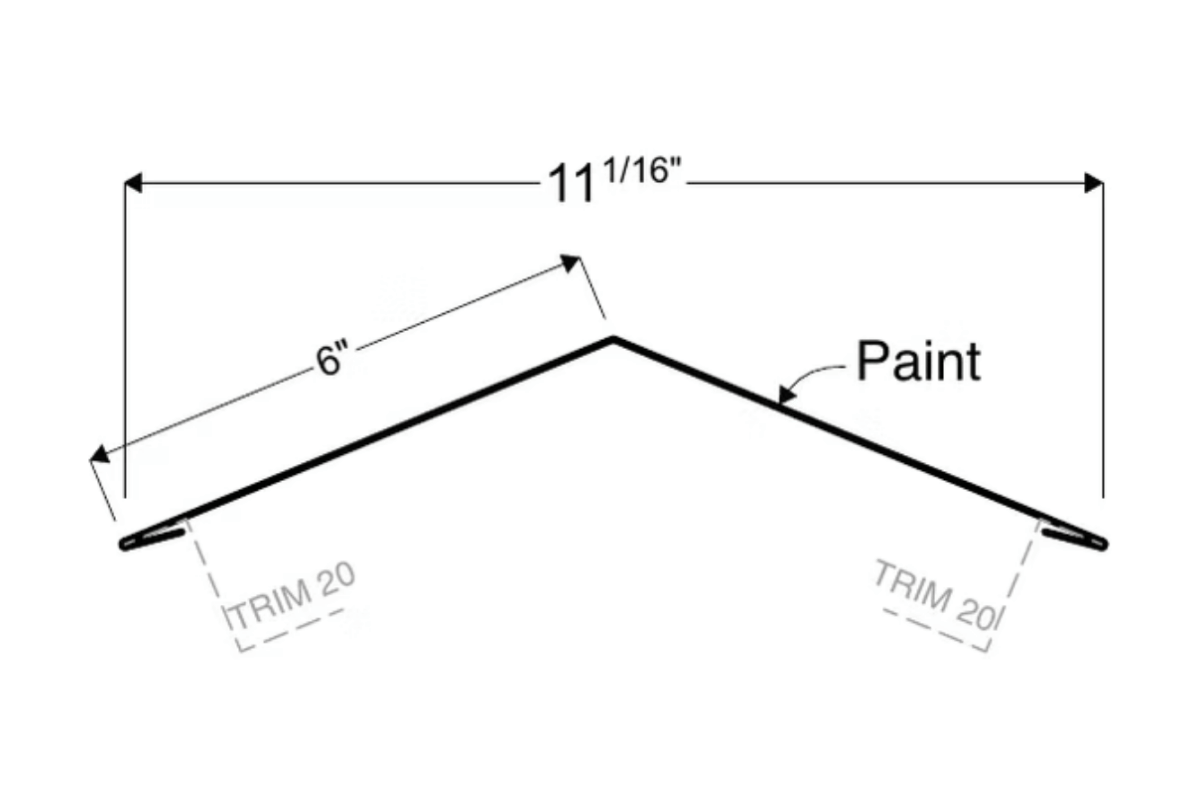

Ridge Cap

Mini Gable

Outside Corner

L Base

Wall Lite

Rat Guard

Mini Eave

Inside Corner

SEE ALL TRIMS
