Corrugated
Traditional and time honored, the corrugated panel might just give your project the rustic appeal you’ve been looking for. This panel can be rolled in a wide variety of gauges, from 29 to 24. Featuring 3/4” wave, it has a minimum recommended pitch of 3/12 and minimum cut length of 36”. Coverage varies depending upon the gauge and whether the panel is being applied as roofing or siding.
36” Min Length
Approx. 33” Coverage pending on gauge
3/4” Rib Height
29ga, 26ga, 24ga, 22ga
3:12 MIN recommended roof pitch
Recommend 2 overlaps for roof application
36” Min Length
Approx. 33” Coverage pending on gauge
3/4” Rib Height
29ga, 26ga, 24ga, 22ga
3:12 MIN recommended roof pitch
Recommend 2 overlaps for roof application
36” Min Length
Approx. 33” Coverage pending on gauge
3/4” Rib Height
29ga, 26ga, 24ga, 22ga
3:12 MIN recommended roof pitch
Recommend 2 overlaps for roof application
Common Trims For Corrugated

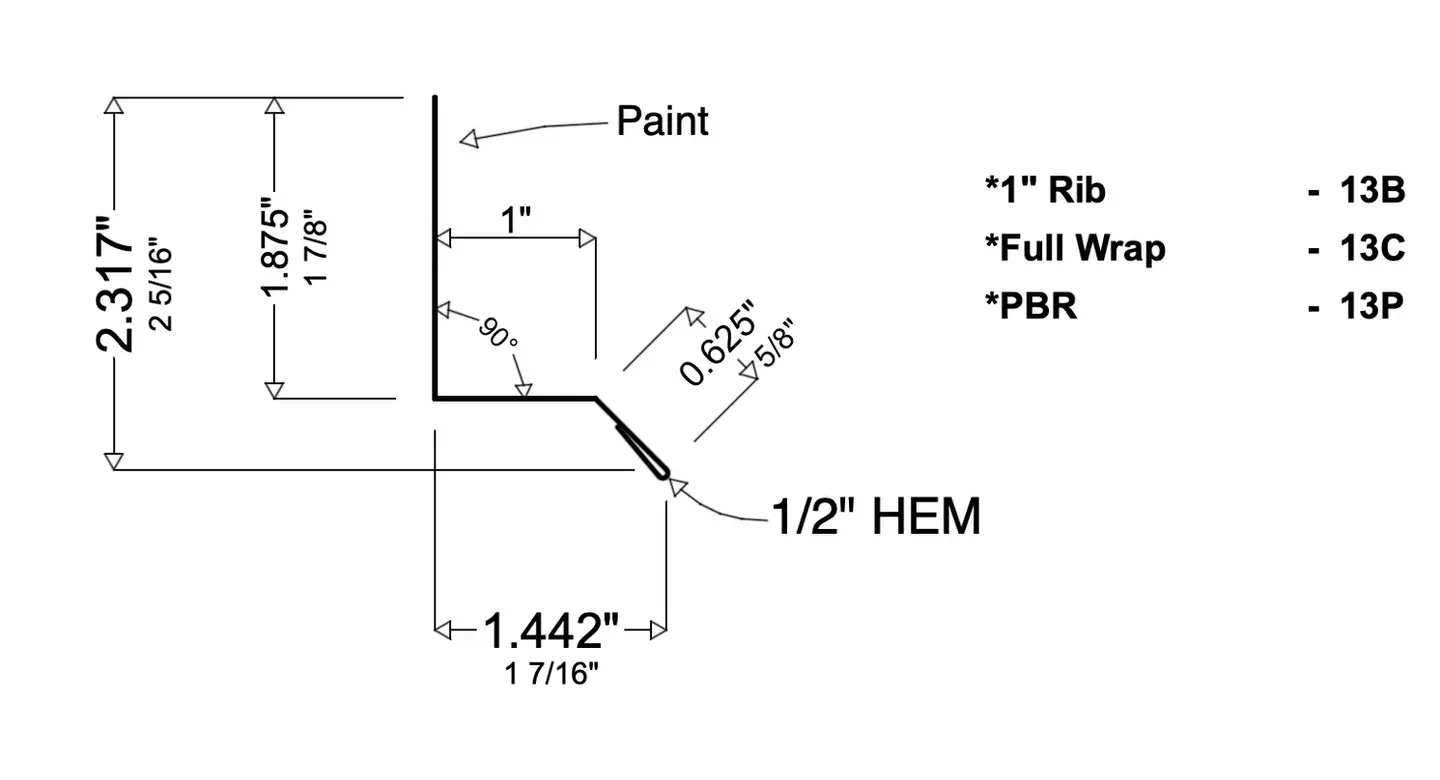

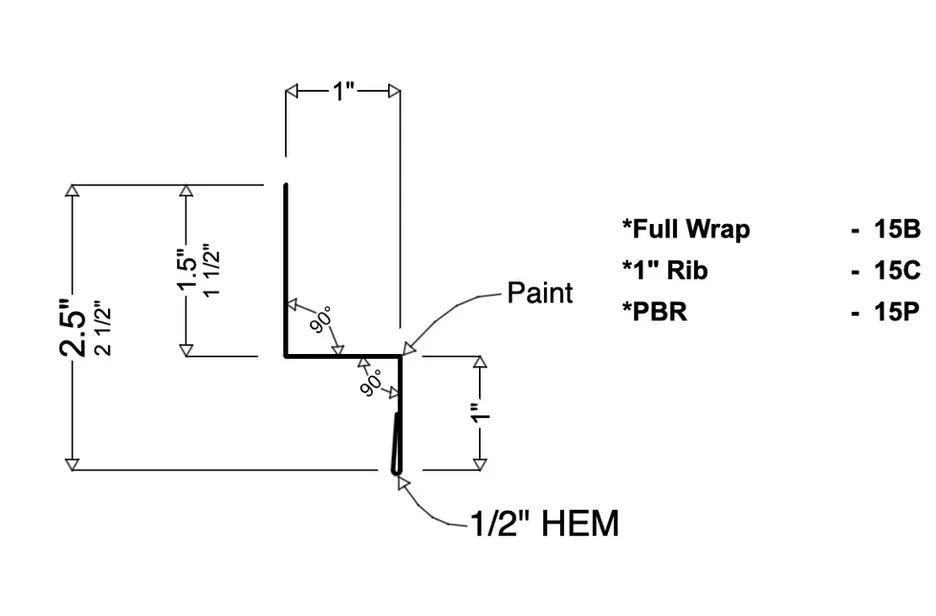

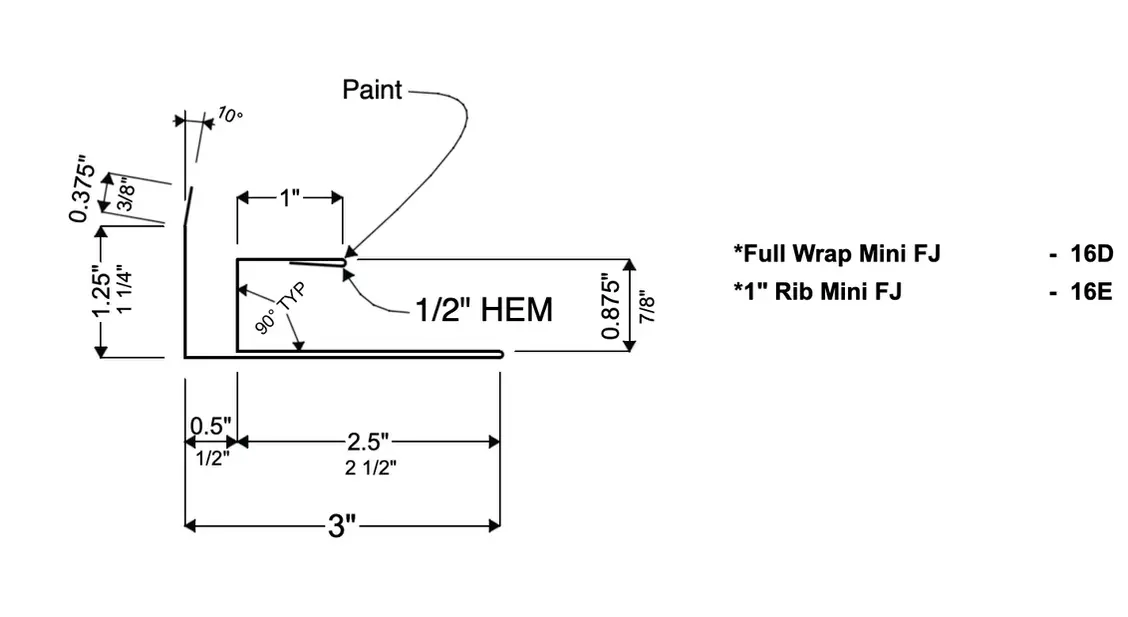

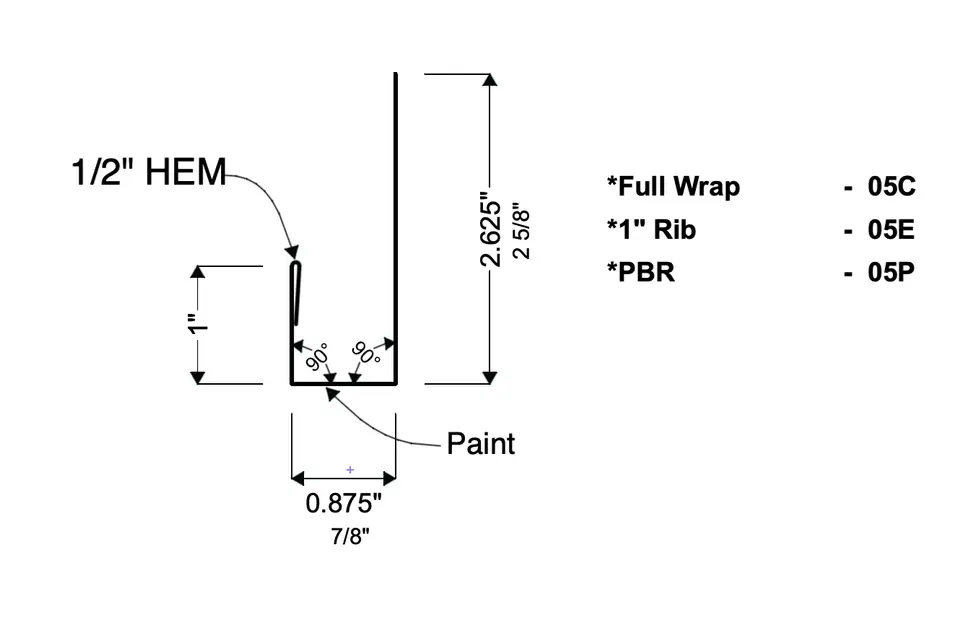

Trim Details
Available Colors For Corrugated
Smooth - Crinkle - Prints - PVDF
Dark Red
29ga, 26ga
Burgundy
29ga
Denali Green
29ga
Medium Brown
29ga, 26ga
Galvalume
29ga, 26ga
Weathered Copper
29ga, 26ga
Hickory
29ga
Light Gray
29ga, 26ga
Dark Blue
29ga
Desert Brown
29ga
Dark Green
29ga, 26ga
Black
29ga, 26ga
Medium Green
29ga
All Steel Blue
29ga
Dark Gray
29ga, 26ga
Forest Green
29ga, 26ga
Dark Brown
29ga, 26ga
Parchment
29ga
Stone
29ga, 26ga
White
29ga, 26ga
Copper Penny
26ga
Ivory
29ga
All Steel Red
29ga, 26ga
Burnished Slate Crinkle
29ga, 26ga
Ash Gray Crinkle
29ga
Charcoal Gray Crinkle
29ga, 26ga
Taupe Crinkle
29ga, 26ga
Rustic Red Crinkle
29ga, 26ga
Koko Brown Crinkle
29ga
Black Crinkle
29ga, 26ga
Evergreen Crinkle
29ga, 26ga
Gallery Blue Crinkle
29ga
White Crinkle
26ga
Burnt Charcoal
26ga
Cedar Natural
26ga
Barnwood
26ga
Sedona Rust
26ga
Charcoal Gray
24ga
Evergreen
24ga
Surrey Beige
24ga
Vintage
24ga
Regal Blue
24ga
Gotham Patina
24ga
Slate Gray
24ga
Regal White
24ga
Dark Bronze
24ga
Rustic Rawhide
24ga
Colonial Red
24ga
Medium Bronze
24ga
Ash Gray
24ga
Matte Black
24ga
A-606 Weathering Steel
22ga
