1.5" Snaplock

A concealed fastener standing seam panel with ease of installation, the Snaplock panel is a favorite among contractors and DIYers alike. This panel offers 14-1/8” coverage with a 1.5” seam height in 26ga and 24ga and optional pre-notching. There are no length restrictions, striations are recommended to reduce oil canning

  • 14-1/8" Coverage

  • 1-1/2" Rib Height

  • 26ga

  • 24ga

  • Available as Pre-Notched Panel

  • Concealed Fastner

  • No MIN or MAX length requirements

  • Striations recommended to reduce oil canning

  • 14-1/8" Coverage

  • 1-1/2" Rib Height

  • 26ga

  • 24ga

  • Available as Pre-Notched Panel

  • Concealed Fastner

  • No MIN or MAX length requirements

  • Striations recommended to reduce oil canning

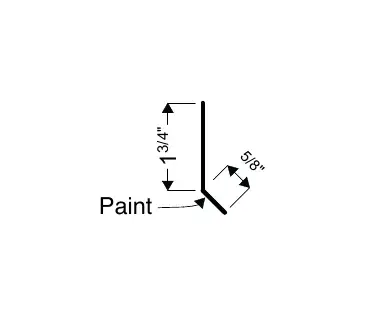

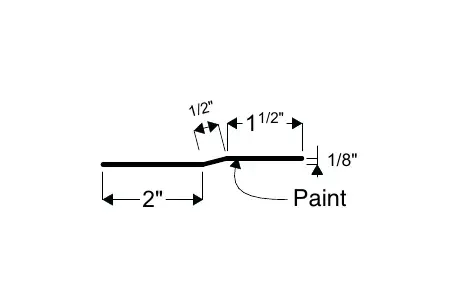

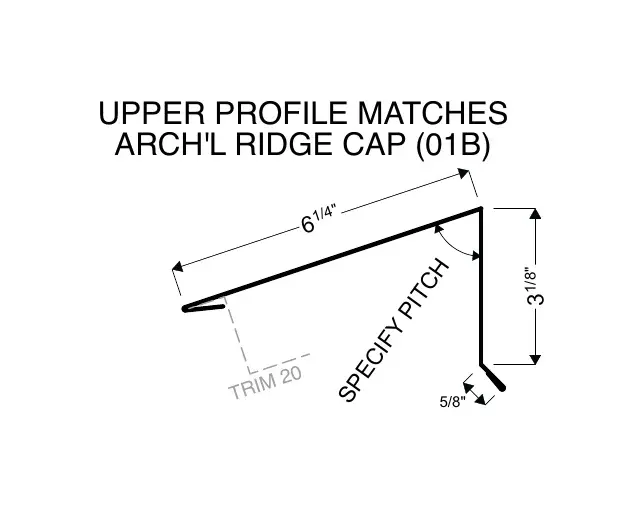

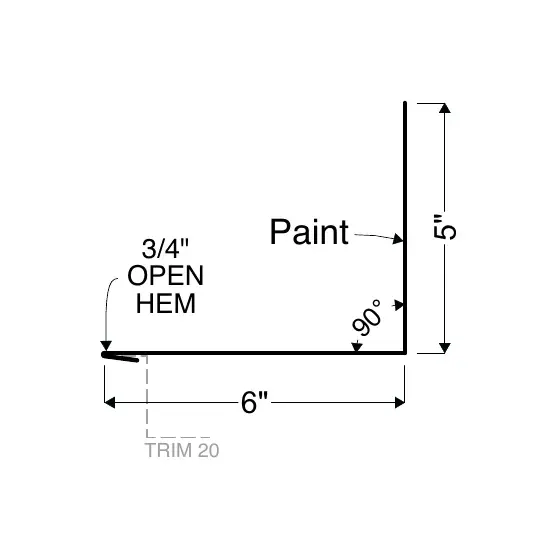

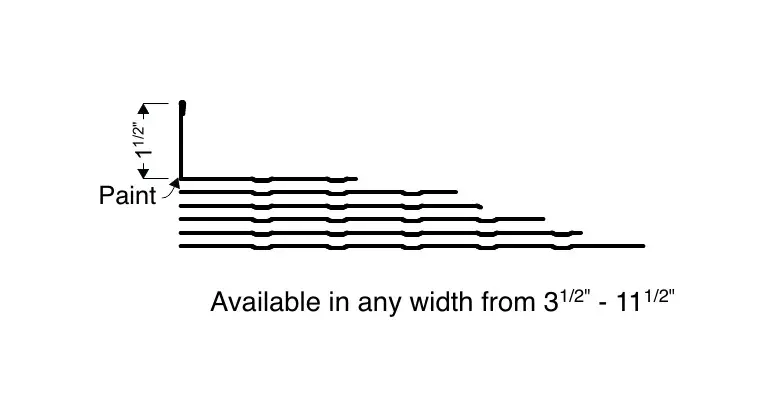

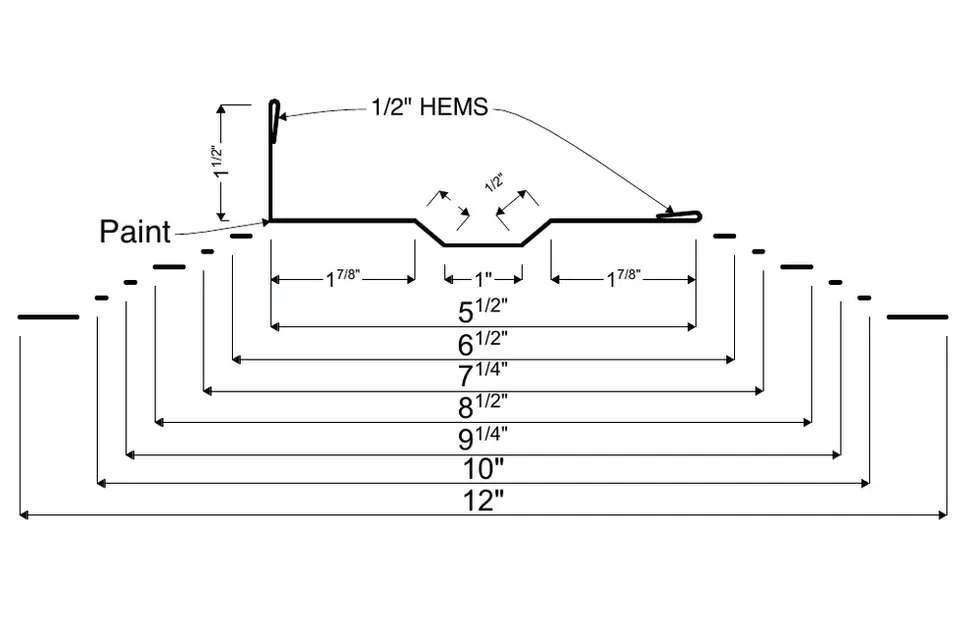

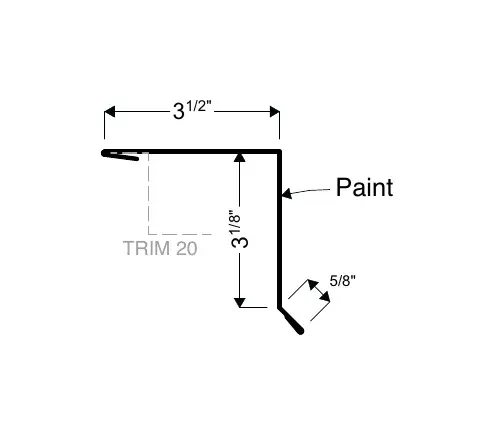

Trim Details

Available Colors

26ga Smooth - 26ga Crinkle - 26ga Print - PVDF

Dark Red

26ga

White

26ga

Medium Brown

26ga

Dark Green

26ga

Galvalume

26ga

Light Gray

26ga

Copper Penny

26ga

Black

26ga

All Steel Blue

26ga

Dark Gray

26ga

Forest Green

26ga

Weathered Copper

26ga

Dark Brown

26ga

Stone

26ga

All Steel Red

26ga

Burnished Slate Crinkle

26ga

Ash Gray Crinkle

26ga

Taupe Crinkle

26ga

Rustic Red Crinkle

26ga

Black Crinkle

26ga

Evergreen Crinkle

26ga

Charcoal Gray Crinkle

26ga

Regal White

24ga

Colonial Red

24ga

Medium Bronze

24ga

Surrey Beige

24ga

Slate Gray

24ga

Gun Metal

24ga

Rustic Rawhide

24ga

Gotham Patina

24ga

Ash Gray

24ga

Evergreen

24ga

A-606 Weathering

22ga

Dark Bronze

24ga

Vintage

24ga

Charcoal Gray

24ga

Regal Blue

24ga

Matte Black

24ga
